USEFUL INFORMATION & TOOLS

To plan your shipment.

We offer you a set of tools that will be very useful to plan your shipment in the best manner possible.

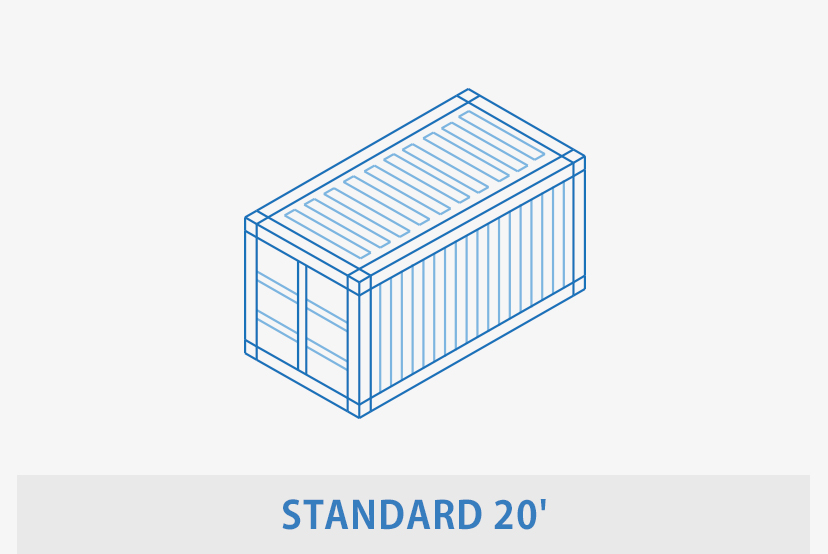

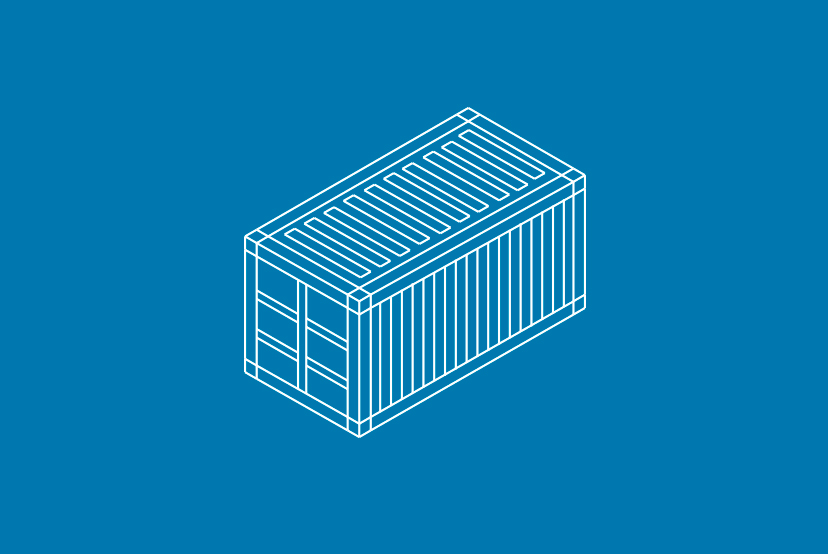

STANDARD 20´

SEE DETAILS >

STANDARD 20´

CAPACITY
Volume: 33.0 m3
Maximum load weight: 28,230 kg
Tare: 2,250 kg
Maximum gross weight: 30,480 kg

INTERNAL DIMENSIONS
Length: 5,900 mm
Width: 2,352 mm
Height: 2,392 mm

ROOF OPENING
Width: 2,340 mm
Height: 2,280 mm

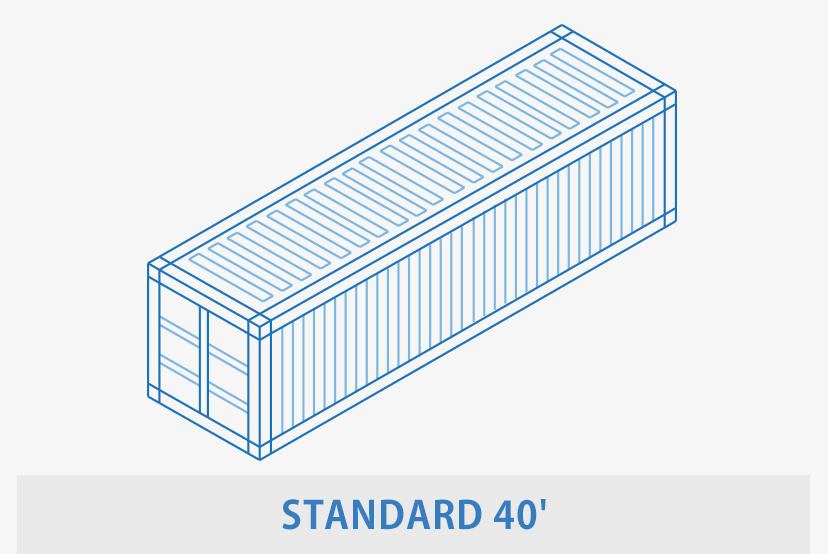

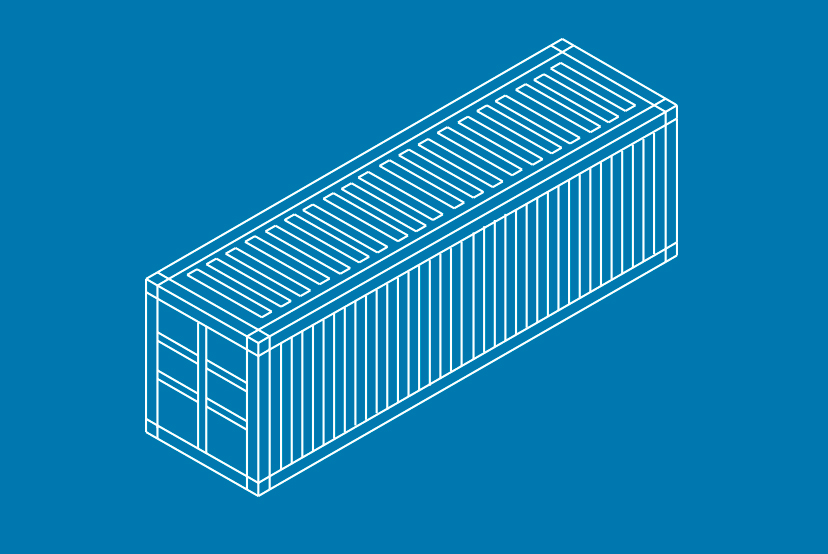

STANDARD 40´

SEE DETAILS >

STANDARD 40´

CAPACITY
Volume: 67.7 m3
Maximum load weight: 26,680 kg
Tare: 3,800 kg
Maximum gross weight: 30,480 kg

INTERNAL DIMENSIONS
Length: 12,031 mm
Width: 2,352 mm
Height: 2,392 mm

ROOF OPENING
Width: 2,340 mm
Height: 2,280 mm

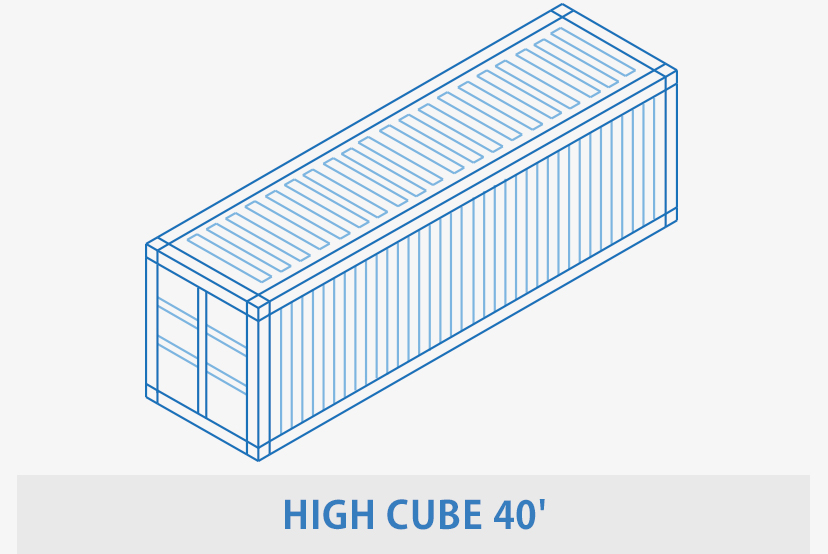

HIGH CUBE 40´

SEE DETAILS >

HIGH CUBE 40´

CAPACITY
Volume: 76.3 m3
Maximum load weight: 26,530 kg
Tare: 3,850 kg
Maximum gross weight: 30,480 kg

INTERNAL DIMENSIONS
Length: 12,031 mm
Width: 2,352 mm
Height: 2,697 mm

ROOF OPENING
Width: 2,340 mm
Height: 2,585 mm

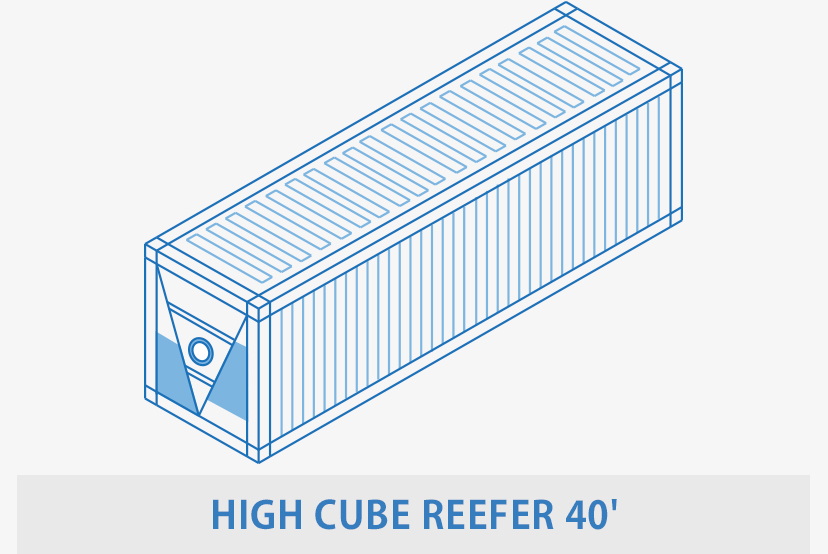

HIGH CUBE REEFER 40´

SEE DETAILS >

HIGH CUBE REEFER 40´

CAPACITY
Volume: 64.3 m3
Maximum load weight: 26,380 kg
Tare: 4,100 kg
Maximum gross weight: 30,480 kg

INTERNAL DIMENSIONS
Length: 12,571 mm
Width: 2,286 mm
Height: 2,532 mm

ROOF OPENING
Width: 2,340 mm
Height: 2,585 mm

OTHERS
Temperature range: -29/+29 °C
Electrical requirements: 380/440V. | 50/60Hz. trif.
Voltage: 190/230V. | 50/60Hz. trif.

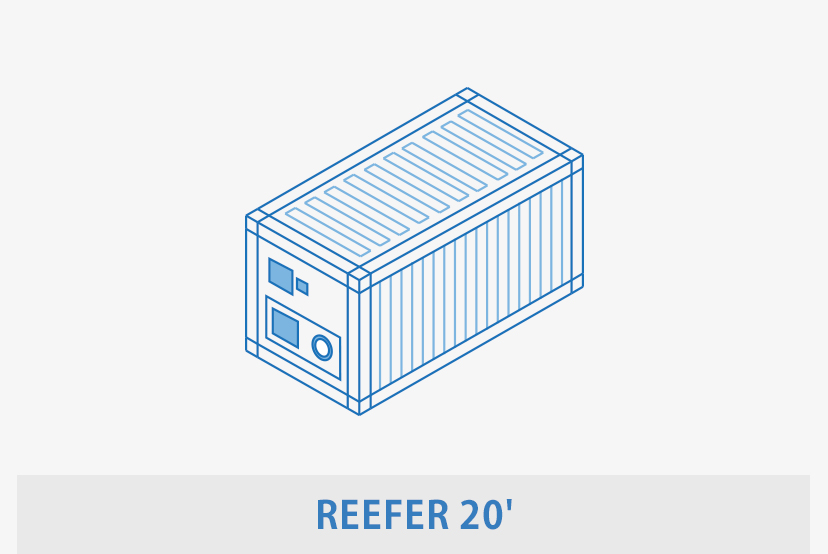

REEFER 20´

SEE DETAILS >

REEFER 20´

CAPACITY
Volumen útil: 24.3 m3
Maximum load weight: 22,000 kg
Tare: 3,400 kg
Maximum gross weight: 25,400 kg

INTERNAL DIMENSIONS
Length: 5,025 mm
Width: 2,225 mm
Height: 2,169 mm

ROOF OPENING
Width: 2,219 mm
Height: 2,118 mm

OTHERS
Temperature range: -25/+25 °C
Electrical requirements: 380/440V. | 50/60Hz. trif.

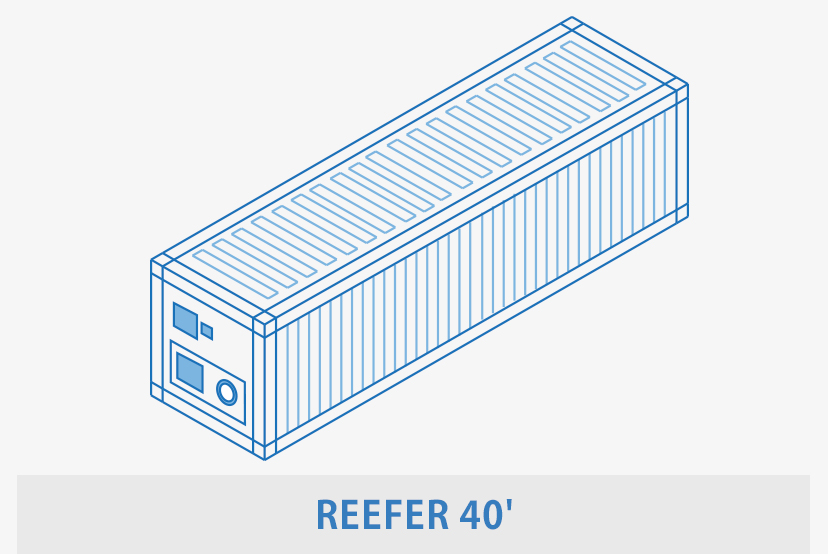

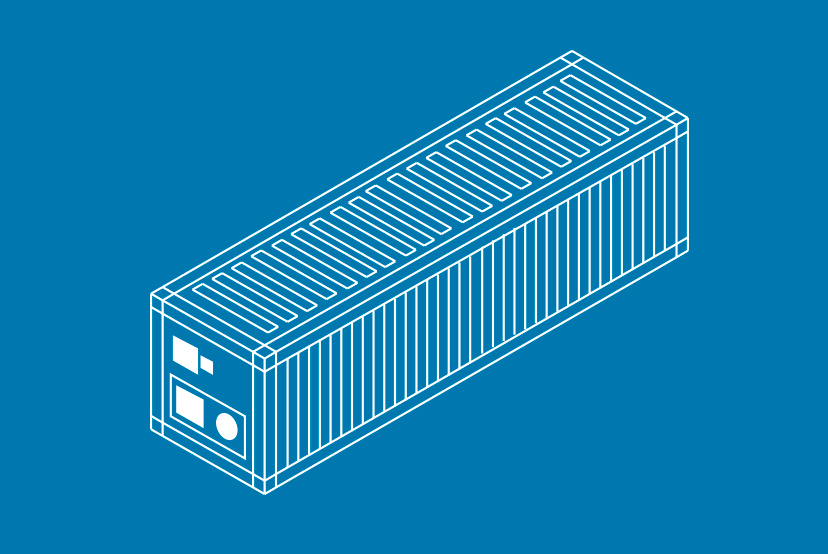

REEFER 40´

SEE DETAILS >

REEFER 40´

CAPACITY
Volumen útil: 48.5 m3
Maximum load weight: 25,980 kg
Tare: 4,500 kg
Maximum gross weight: 30,480 kg

INTERNAL DIMENSIONS
Length: 10,050 mm
Width: 2,225 mm
Height: 2,169 mm

ROOF OPENING
Width: 2,219 mm
Height: 2,118 mm

OTHERS
Temperature range: -25/+25 °C
Electrical requirements: 380/440V. | 50/60Hz. trif.

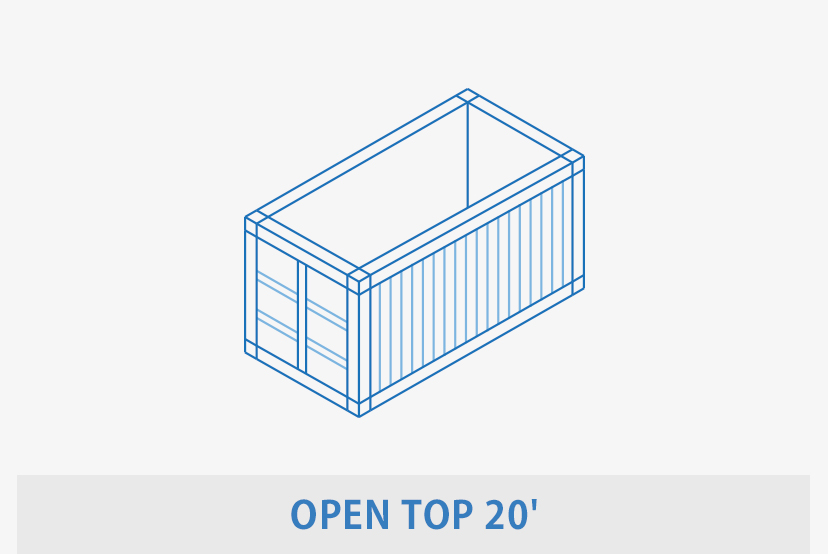

OPEN TOP 20´

SEE DETAILS >

OPEN TOP 20´

CAPACITY
Volume: 32.3 m3
Maximum load weight: 28,120 kg
Tare: 2,360 kg
Maximum gross weight: 30,480 kg

INTERNAL DIMENSIONS
Length: 5,900 mm
Width: 2,350 mm
Height: 2,330 mm

ROOF OPENING
Width: 2,338 mm
Height: 2,234 mm

ROOF OPENING DIMENSIONS
Anchura: 2,350 mm
Altura: 2,392 mm

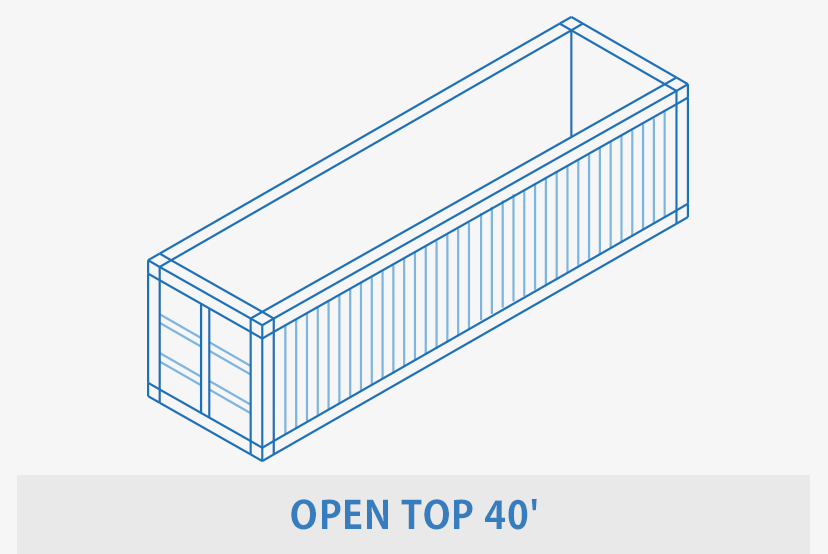

OPEN TOP 40´

SEE DETAILS >

OPEN TOP 40´

CAPACITY
Volume: 65.9 m3
Maximum load weight: 26,330 kg
Tare: 4,150 kg
Maximum gross weight: 30,480 kg

INTERNAL DIMENSIONS
Length: 12,031 mm
Width: 2,350 mm
Height: 2,330 mm

ROOF OPENING
Width: 2,338 mm
Height: 2,234 mm

ROOF OPENING DIMENSIONS
Anchura: 2,350 mm
Altura: 2,392 mm

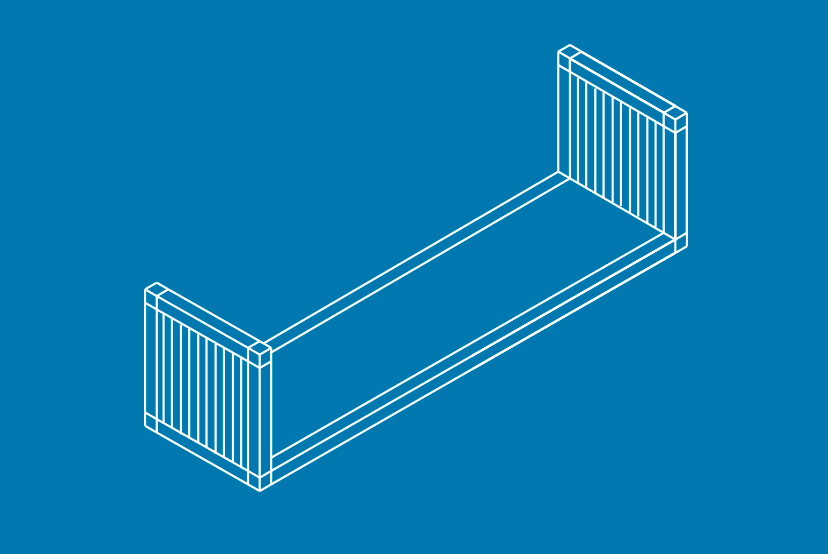

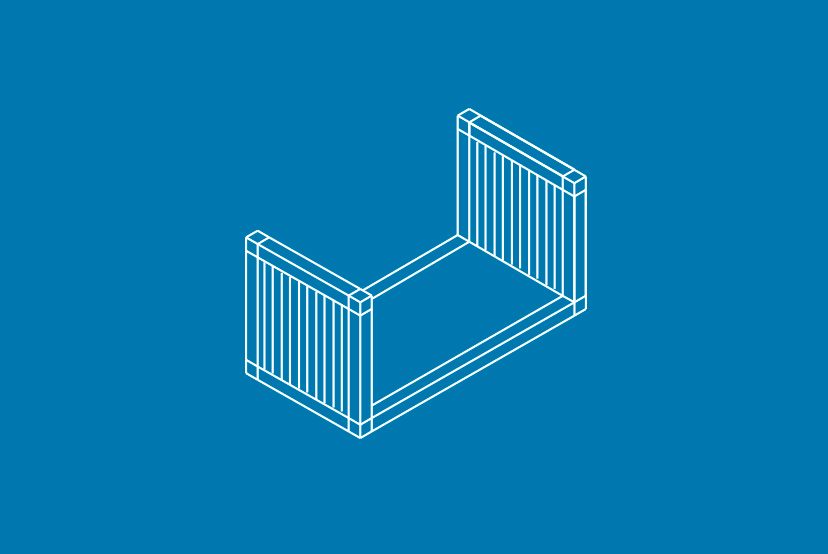

FLAT RACK 20´

SEE DETAILS >

FLAT RACK 20´

CAPACITY
Volumen útil: 27.6 m3
Maximum load weight: 27,610 kg
Tare: 2,870 kg
Maximum gross weight: 30,480 kg

INTERNAL DIMENSIONS
Length: 5,900 mm
Width: 2,148 mm
Height: 2,176 mm
FLAT RACK 40´

SEE DETAILS >

FLAT RACK 40´

CAPACITY
Volumen útil: 54.8 m3
Maximum load weight: 25,030 kg
Tare: 5,450 kg
Maximum gross weight: 30,480 kg

INTERNAL DIMENSIONS
Length: 12,032 mm
Width: 2,240 mm
Height: 2,034 mm

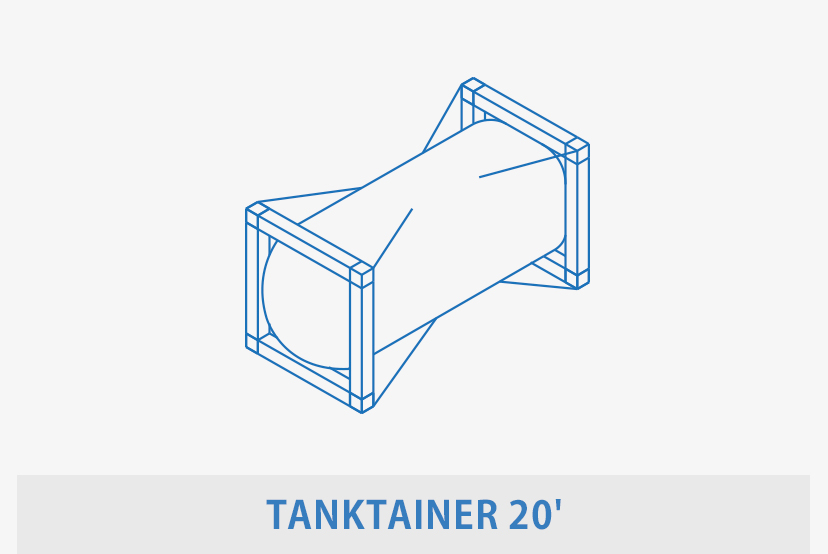

TANKTAINER 20´

SEE DETAILS >

TANKTAINER 20´

CAPACITY
Volume: 32.3 m3
Maximum load weight: 28,120 kg
Tare: 2,360 kg
Maximum gross weight: 30,480 kg

INTERNAL DIMENSIONS
Length: 5,900 mm
Width: 2,350 mm
Height: 2,330 mm

ROOF OPENING
Width: 2,338 mm
Height: 2,234 mm

ROOF OPENING DIMENSIONS
Anchura: 2,350 mm
Altura: 2,392 mm

DIMENSIONAL WEIGHT

This tool will help you make the necessary calculations to know the Dimensional Weight of your international cargo. Reference: Please enter the decimal numbers separated by a decimal stop (.)
